Functional testing sample test instructions

Functional testing sample test instructions


HQ NextPCB can perform functional testing on PCBA orders for prototype, small batch and mass production volumes. To help you get an idea of what a functional test case looks like, we have prepared some examples below. Testing can be as simple as a power on test or full testing with a test jig and software controlled testing with firmware burning. Our test engineers can assist with fixture development to increase testing efficiency for larger batches.

Click here for more information on HQ NextPCB's functional testing capabilities and how to take advantage of our latest offer.



Simple Sample Test Instructions

Order Quantity: 100
Test Quantity: 100

Required Equipment: 5V power supply

Test Instructions:
Apply 5V power to terminals - +
Pass Condition: All LEDs light up with equal brightness
Fail Condition: One or more LEDs do not light up or have different brightness




Industrial Meter with Firmware Programming Sample Test Instructions

Order Quantity: 20
Test Quantity: 20

Required Files: hqsample_a_0_2.elf (firmware)
Required Equipment: Computer, STM32 programmer, relay coil driver, pulse generator and power supply.

Test Instructions:

1. Apply 24 VDC power to the GND and + IN terminal and make sure display powers and then program unit.
Pass Condition: Display powers on and device programmed successfully

2. Activate the relay coil driver using the push buttons and verify that 24 VDC power is available on connections GND and +FM.
Pass Condition: 24 VDC output

3. Then apply approximately 209 hertz square wave on terminal TRM and verify the display shows 100.
Pass Condition: Display shows 100

4. Verify that there is a square wave pulse output showing on PUL - + terminals
Pass Condition: Square wave output

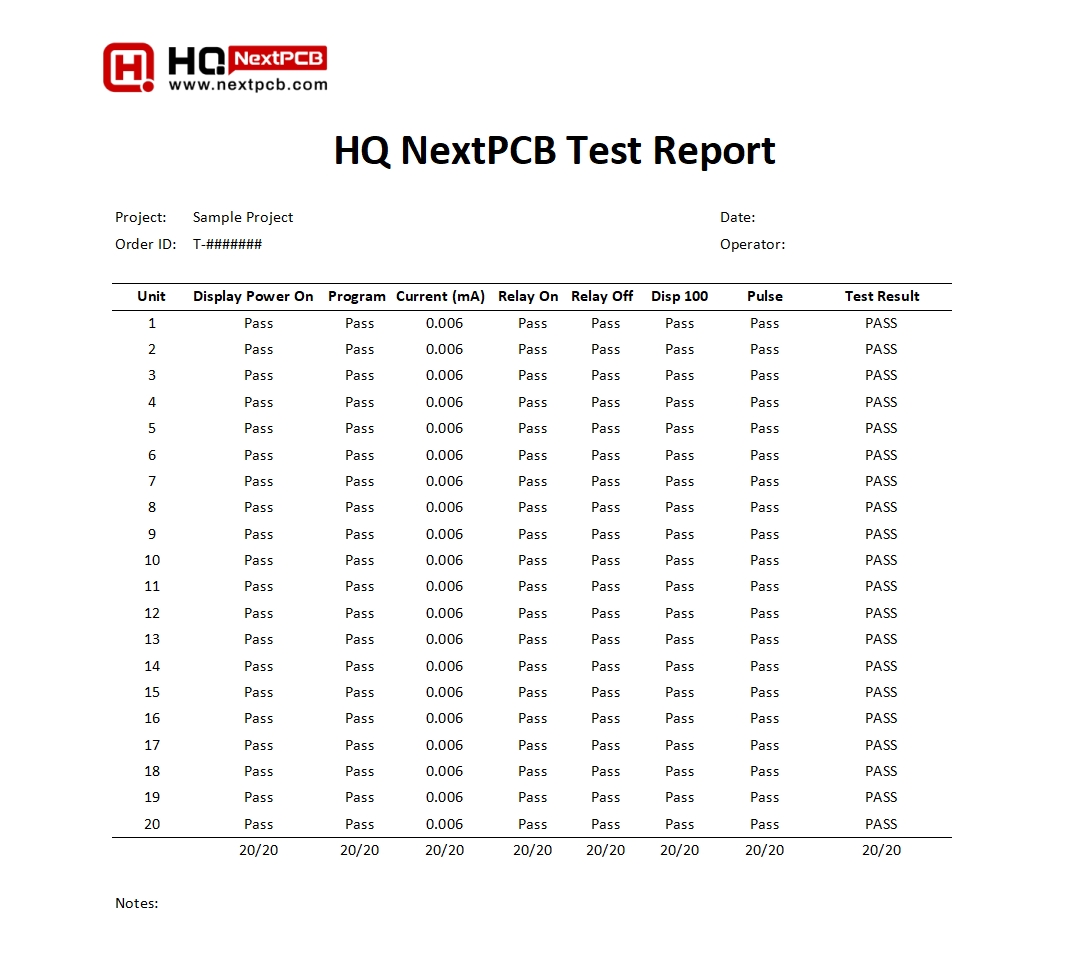

Test report available upon request
Sampleļ¼š

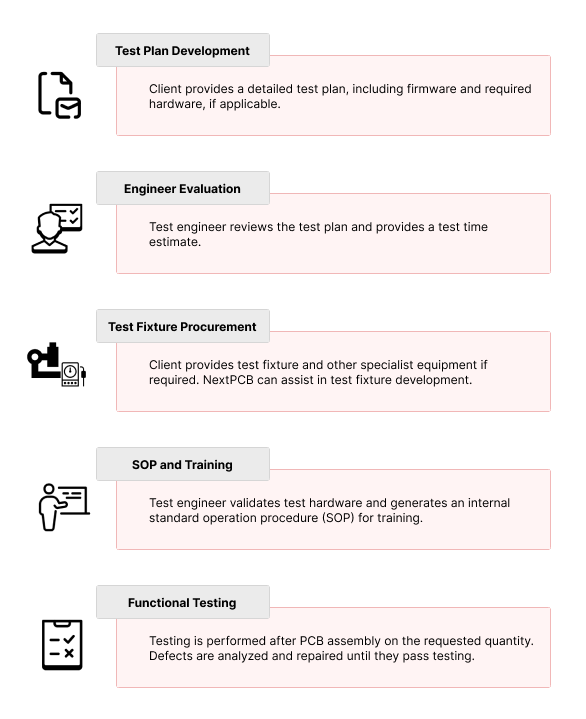

HQ NextPCB Test Process
